JXQ1 Automatic Transfer Switch 2P
JXQ1 Automatic Transfer Switch 2P
JXQ1 Automatic Transfer Switch 4P

JXQ1 Automatic Transfer Switch

The dual power automatic switch is a newly developed miniature house hold power switch, which is mainly used to test whether the main power supply or stand by power supply is normal. When the normal power supply is abnormal, the stand by power supply starts to work immediately, which ensures the continuity, reliability and safety of power supply. This product is specially designed for household rail installation and is specially used for PZ30 distribution box.The dual power automatic switch is suitable for emergency power supply systems with 50 or 60Hz and rated 400V AC. ATS has the characteristics of solid structure,reliable conversion, convenient installation and maintenance and long service life.It is widely used in various occasions where power failure cannot be sustained, and can be operated by electricity or manually. ATS is composed of TSE and controller.According to GB/T14048. 11, Part 6-1: multi functional equipment and switchgear is formulated. It can be seen that ATS is the most qualified low-voltage switchgear and control device.

Get Quote
Basic Specification and Main Parameters
Model JXQ1
Rated current le (A) 16、20、25 32、40、50、63 80、100
Insulation voltage Ui AC690V,50Hz
Rated voltage Ue AC400V,50Hz
Classification PC class: can be manufactured and withstood without short-circuit current
Pole No. 2P 3P 4P
Weight(kg) 1.7 2.1 2.6
Life Electric Life: 2000 times; Manual Life: 5000 times
Rated short circuitcurrent Iq 50kA
Short circuit protection device (fuse) RT16-00-63A
Rated impulse withstand voltage 8kV
Control circuit Rated control voltage Us: AC220V/50Hz
Normal working conditions: 85-1 10%Us .
Auxiliary circuit 2 relays, each with two sete of contact converter
capacity capacity: AC220V/50HZle= 5y
Conversion time of contactor <50ms
Operation concersion time <50ms
Returnconversion time <50ms
Power off time <50ms



Connection Mode of Photovoltaic Inerter

Connection Mode of Timing Switch

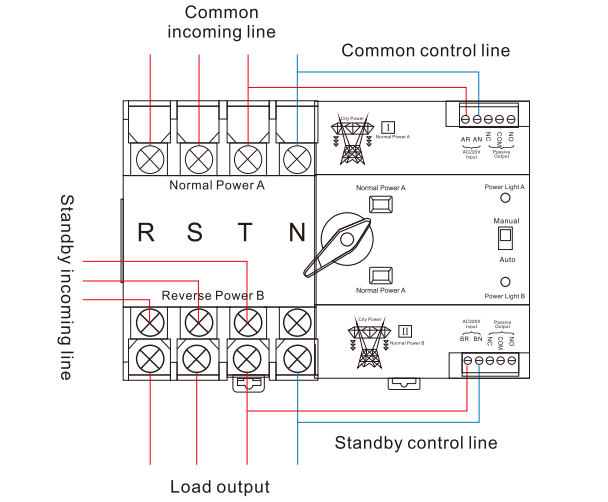

Wiring Diagram






Controller Wiring Diagram

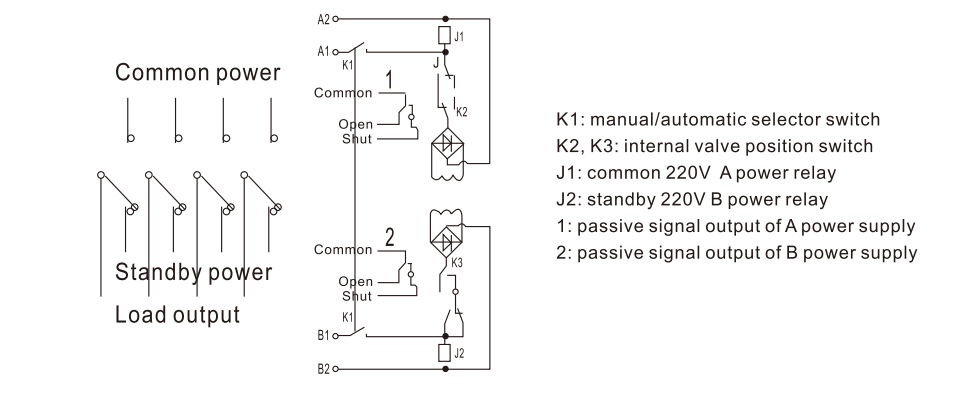

Internal Wiring Diagram


Overall and Installation Dimension
