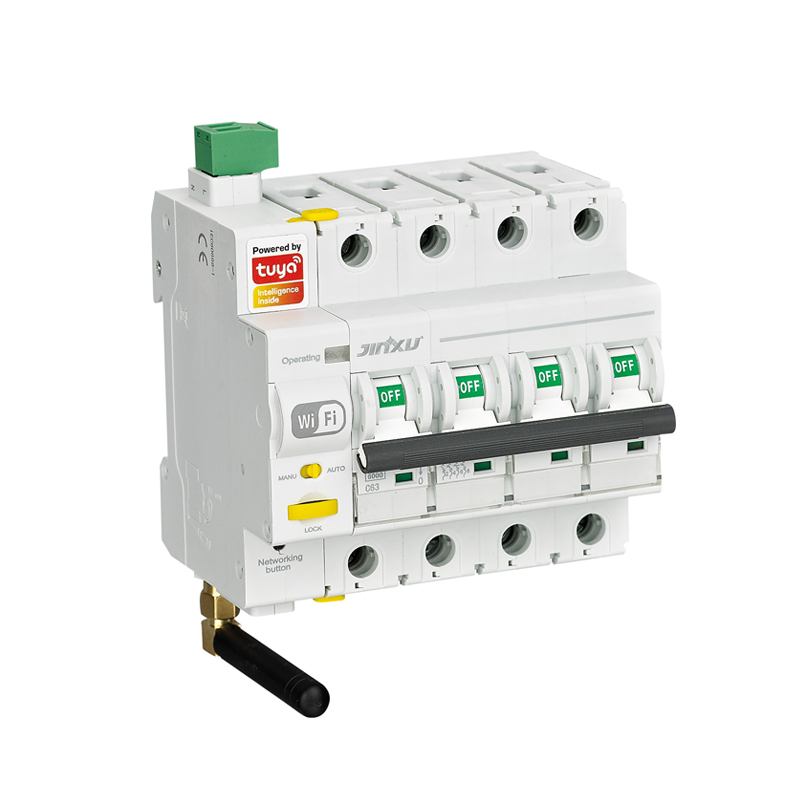

Basic Specification and Main Parameters
|
Poles
|
1P,1P+N,2P,3P,4P
|
|
Rated current
|
10A,16A,25A,32A,40A,50A,63A
|
|
Rated working voltage
|
220/230V(1P/1P+N/2P) 380/400V(3P/4P)
|
|
Rated frequency
|
50/60Hz
|
|
Breaking capacity
|
6KA,10KA
|
|
Tripping time
|
≤0.1S
|
|
Short circuit time
|
≤0.04S
|
|
Standby power consumption
|
<3W
|
|
Temperature requirements
|
-20°C~+70°C
|
|
Type
|
Type C,Type d
|
|
Control mode
|
Integrated manualand automatic control
|
|
Configurable parameters
|
Ocer-voltage protection,Leakage protection,Reclosing
|
Functional Features
- Supports multiple control platforms such as Tuya APP, Mi Home APP, RS485, dry contacts and
wireless kinetic energy.
- Supports local or remote operation for turning on and off
- Supports DIN-rail mounting
- Remote control without distance limitations
- Supports customization of protection thresholds
- Supports automatic reclosing and customizable reclosing time configuration
Product Wiring and Installation Dimension
-1428.jpg)
-1429.jpg)
-1429.jpg)
-1426.jpg)
