JXB1L-63 RCCB with Over Current Protection is applicable to a line of AC 50/60Hz,rated voltage 230V, rated current to 63A to protect human electric shock , leakage protection,.The leakage breaker have overload, short circuit, over voltage protection function, It can also be used asinfrequent on-and-off operation and changeover, especially for industrial and commercial lighting distribution system.
It complies with standard IEC61009-1.
|
Frame class |
63A |
|
Pole number |
1P+N |
|
Standard |
IEC61009-1 |
|
Rated working current(In) |
6A,10A,16A ,20A,25A,32A ,40A,50A,63A |
|
Rated working voltage(Ue) |
230V |
|
Rated frenquency |
50Hz/60Hz |
|
Rated limiting short-circuit current(Inc) |
6000A |
|
Magnetic tripping curve |
C(5In~10In) |
|
Mechanical life |
4000 |
|
Electric life |
2000 |
|
Rated residual operating current(I∆n) |
30mA,50mA |
|
Rated residual un-operating current(I∆no) |
15mA,25mA |
|
Rated making and breaking capacity(I∆m) |
2000A |
|
Ambient Temperature |
Initial Status |
Test Current |
TestTime |
Expected Result |
Note |
|
30±2℃ |
Cold position |
1.13In |
t≥1h |
Non-release |
_ |
|
Carried out immediately after previous test |
1.45In |
t<1h |
Release |
_ |
|
|
Cold position |
2.55In |
1s<t<60s (In≤32A) |
Release |
Current smoothly rise to specified value within 5s |
|
|
Cold position |
2.55In |
1s<t<120s (In>32A) |
Release |
||
|
-5~+40℃ |
Cold position |
3In |
t≥0.1s |
Non-release |
Type B |
|
5In |
t<0.1s |
Release |
Type B |
||
|
Cold position |
5In |
t≥0.1s |
Non-release |
Type C |
|
|
Cold position |
10In |
t<0.1s |
Release |
Type C |
|
|
Cold position |
10In |
t≥0.1s |
Non-release |
Type D |
|
|
Cold position |
20In |
t<0.1s |
Release |
Type D |
|

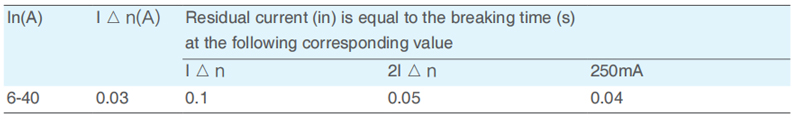

In(A) |
I∆n(A) |
The breaking time(s) when residual current is at the following corresponding value |
||
|
I∆n |
2I∆n |
5I∆n |
||
|
6-63 |
0.03 |
0.3 |
0.15 |
0.04 |
|
|
Wide Handle The smooth lines of the handle are consistent with the human body Customary handle radian Reduce the pressure of water chestnut on fingers Better pull ! |
|
|
Large Terminal The quality of the terminal mainly depends on the torque it bears and the rust resistance, compliance with the national compulsory certification standards, to ensure the safety of operation. |
|
|

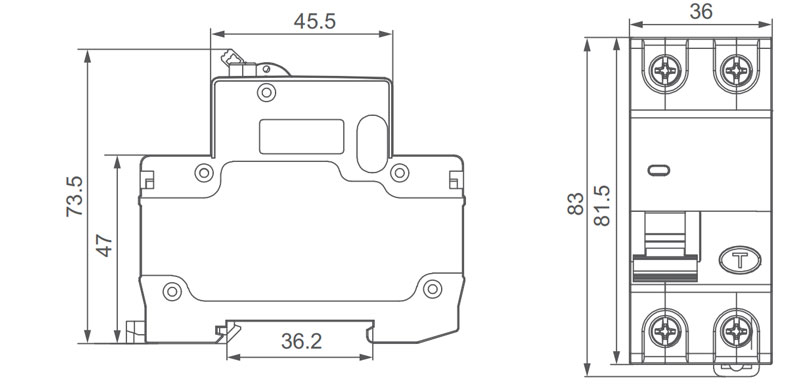

DIN-rail mounting Standard guide rail installation,save both time and labour Easy installation |
