Basic Specification and Main Parameters
|
Model Name
|
JXB1LE-63
|
|
Pole number
|
1P+N,2P,3P,3P+N,4P
|
|
Standard
|
IEC61009-1
|
|
Rated working current(In)
|
6A,10A,16A,20A,25A,32A,40A,63A
|
|
Rated working voltage(Ue)
|
230V(1P),400V(2P,3P,4P)
|
|
Rated frenquency
|
50/60Hz
|
|
Rated limiting short-circuit current(Inc)
|
3000A~6000A
|
|
Magnetic tripping curve
|
B(3-5In) C(5-10In) D(10-20In)
|
|
Mechanical life
|
8000
|
|
Electric life
|
4000
|
|
Protection degree
|
IP20
|
|
Enviroment temeperature
|
-5℃~+40℃
|
|
Fiducial temperature
|
30℃
|
|
Installation level
|
≤2000m
|
|
Instant release type
|
C type
|
|
Sensibility
|
AC type
|
|
Rated residual operating current
|
30mA/100mA/300mA
|
The Over-current Protection Property
|
Ambient Temperature
|
Initial Status
|
Test Current
|
TestTime
|
Expected Result
|
Note
|
|
30±2℃
|
Cold position
|
1.13In
|
t≥1h
|
Non-release
|
_
|
|
Carried out immediately after previous test
|
1.45In
|
t<1h
|
Release
|
_
|
|
Cold position
|
2.55In
|
1s<t<60s
(In≤32A)
|
Release
|
Current smoothly rise to specified value within 5s
|
|
Cold position
|
2.55In
|
1s<t<120s
(In>32A)
|
Release
|
|
-5~+40℃
|
Cold position
|
3In
|
t≥0.1s
|
Non-release
|
Type B
|
|
5In
|
t<0.1s
|
Release
|
Type B
|
|
Cold position
|
5In
|
t≥0.1s
|
Non-release
|
Type C
|
|
Cold position
|
10In
|
t<0.1s
|
Release
|
Type C
|
|
Cold position
|
10In
|
t≥0.1s
|
Non-release
|
Type D
|
|
Cold position
|
20In
|
t<0.1s
|
Release
|
Type D
|
Residual Current Breaking Time
|
In(A)
|
I△n(A)
|
Breaking times(s) when equals to following rate
|
|
1△n
|
2△n
|
5△n
|
|
6-63A
|
0.03,0.1,0.3
|
0.1
|
0.06
|
0.04
|
Structural Features
● Small, tight structure, price is better than similar products
● Housing and some functional parts are made of high fire-resistant.heat resistant,impact resistant material.
● Directly with the zero wire installation,avoid the electric shock hazard which caused by zero line connection errors.
● Using the latest circuit design and high-performance electronic components, has strong ability to
withstand when the impact of current and surge of over-voltage .
● Mounted by standard rail track, convenient and save time.
Dimension
Large Shell
Small Shell

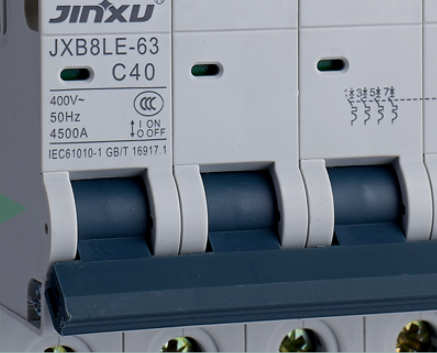

Product View
|
|
Wide Handle
The smooth lines of the handle are consistent with the human body
Customary handle radian
Reduce the pressure of water chestnut on fingers
Better pull !
|
|
|
Large Terminal
The quality of the terminal mainly depends on the torque it bears and the rust resistance, compliance with the national compulsory certification standards, to ensure the safety of operation.
|
|
|
DIN-rail mounting
Standard guide rail installation,save both time and labour
Easy installation
|
