JXB1 6KA MCB
JXB1 6KA MCB

JXB1-63 4.5KA MCB

JXB1-63 is applicable to a line of AC 50/60Hz, 230V in single pole, 415V in double, three, four poles for protecting overload and short circuit, and rated current up to 63A. It can also be used for infrequent line conversion under the normal condition.The breaker is applicable to lighting distribution system in industrial enterprise, commercially district, high-rise building and dwelling house. It conforms with the standards of IEC60898.

Get Quote
Basic Specification and Main Parameters

Model Name

JXB1-63

Pole number

1P,2P,3P,4P

Standard

IEC60898/GB10963.1

Rated working current(In)

2A,4A,6A,10A,16A,20A,25A,32A,40A,63A

Rated working voltage(Ue)

230V(1P),415V(2P,3P,4P)

Rated frenquency

50Hz

Rated limiting short-circuit current(Inc)

3000A~6000A

Magnetic tripping curve

B(3-5In)  C(5-10In)  D(10-20In)

Mechanical life

10000

Electric life

4000

Protection degree

IP20

Enviroment temeperature

-5℃~+40℃

Fiducial temperature

30℃

Installation level

≤2000m

Biggest wiring ablity

25m㎡

Installation style

35mm din rail

Connection type

Tunnel style,Pin style,U style



The Over-current Protection Property

Ambient Temperature

Initial Status

Test Current

TestTime

Expected Result

Note

30±2℃

Cold position

1.13In

t≥1h

Non-release

_

Carried out immediately after previous test

1.45In

t<1h

Release

_

Cold position



2.55In

1s<t<60s

(In≤32A)

Release

Current smoothly rise to specified value within 5s

Cold position

2.55In

1s<t<120s

(In>32A)

Release

-5~+40℃

Cold position

3In

t≥0.1s

Non-release

Type B

5In

t<0.1s

Release

Type B

Cold position

5In

t≥0.1s

Non-release

Type C

Cold position

10In

t<0.1s

Release

Type C

Cold position

10In

t≥0.1s

Non-release

Type D

Cold position

20In

t<0.1s

Release

Type D



Wiring Diagram



Characteristic Curve

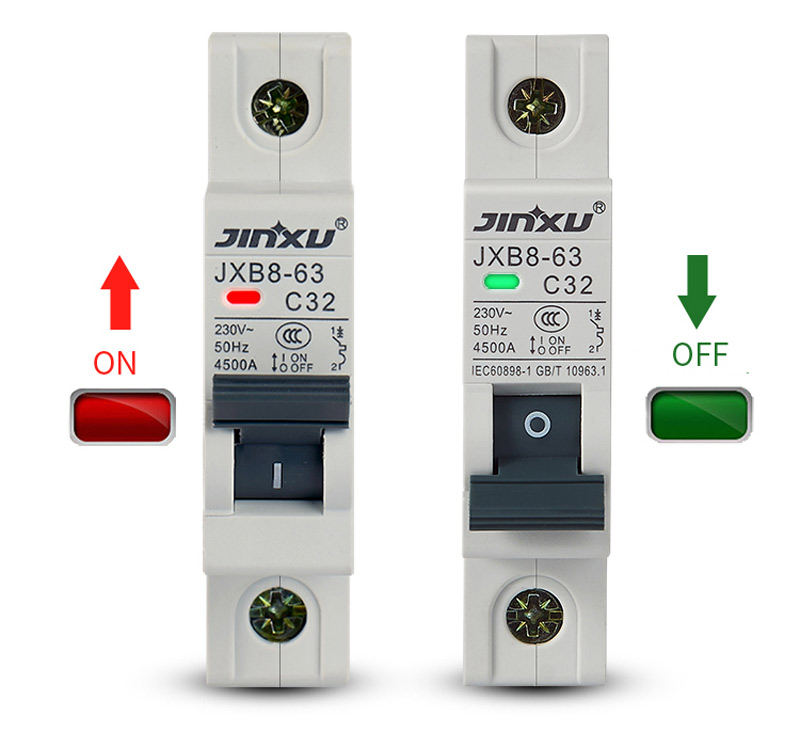

Red and green indicator ----power on and off at a glance---- avoid wrong operation
