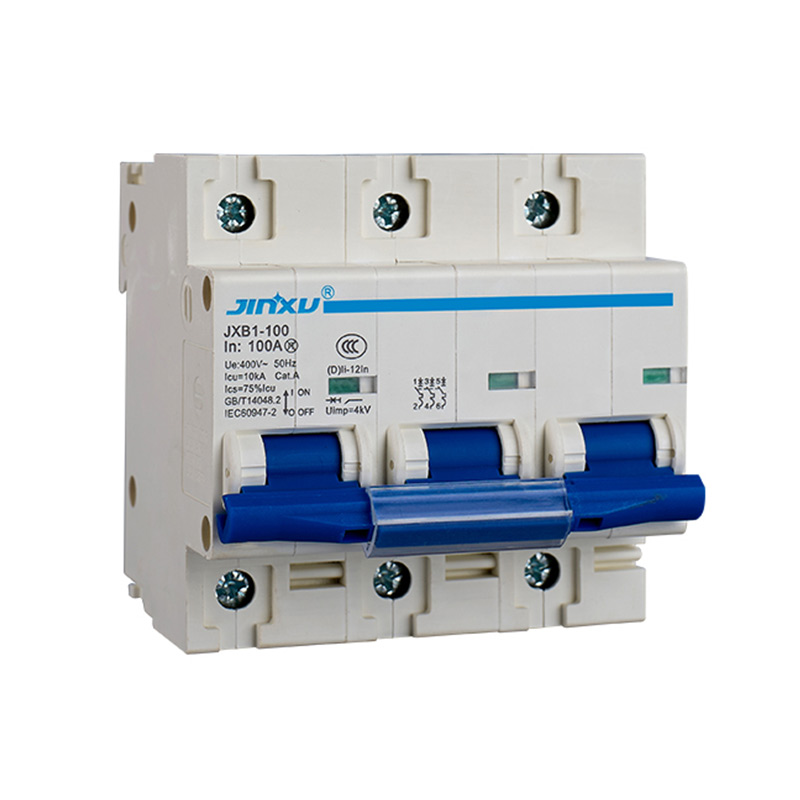

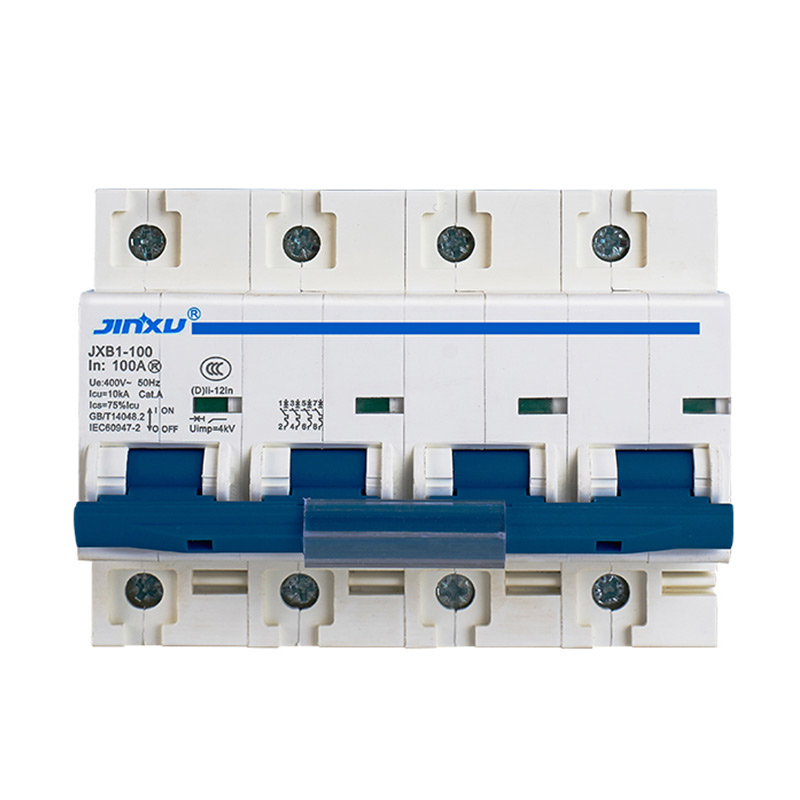

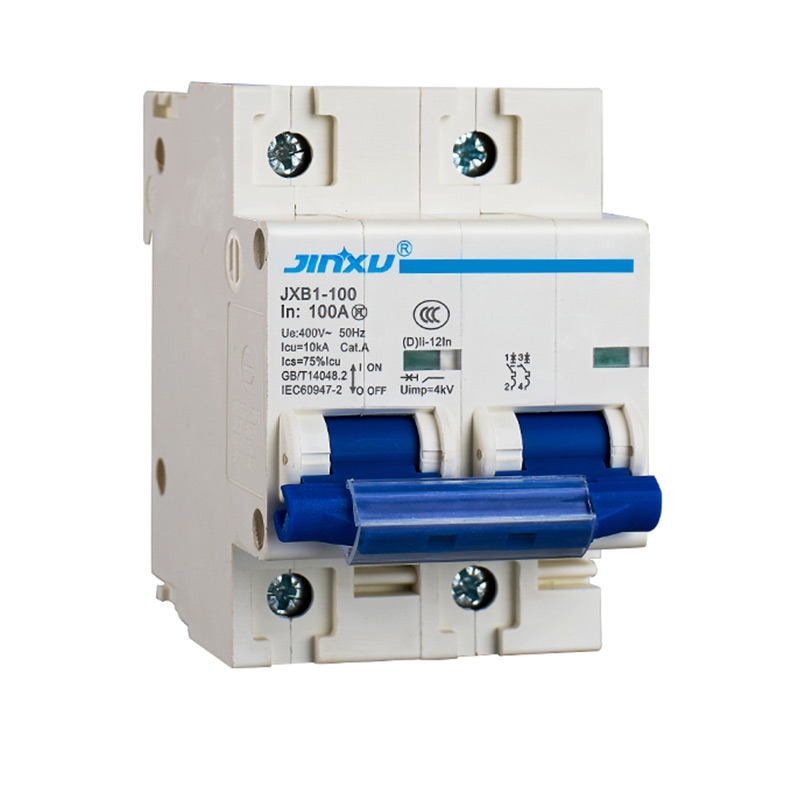

JXB1-125 125A MCB

JXB1-125 have delicate appearance, light weight. Excellent and reliable performance, high breaking capacity, rapid tripping and mounted by rail. Its enclosure and components adopts high fire-resistant and shock-resistant plastic of long durability. It mainly serves for protecting the circuits of AC 50Hz/60Hz, 230V of single pole, 400V of two poles or three or four poles from overload or short-circuit, and also for unfrequent making and breaking electrical apparatus and lighting circuit. It conforms with the standards of IEC60947-2.

Get Quote

Basic Specification and Main Parameters

Model name	JXB1-125(NC100)
Pole number	1P,2P,3P,4P
Standard	IEC60947
Rated working current(In)	63A ,80A, 100A,125A
Rated working voltage(Ue)	230V(1P),400V(2P,3P,4P)
Rated frenquency	50/60Hz
Rated limiting short-circuit current(Inc)	10000A
Magnetic tripping curve	B(3-5In) C(5-10In) D(10-20In)
Mechanical life	10000
Electric life	6000
Protection degree	IP20
Enviroment temeperature	-5℃~+40℃
Fiducial temperature	30℃
Installation level	≤2000m
Installation style	35mm din rail
Connection type	Tunnel style,Pin style,U style

The Over-current Protection Property

Sequence No.	Rated Current	Initial Status	Test Current	Schedule Time	Expected Result	Note
1	In=63A	Cold position	1.05In	t≤1h	Non-release
1	In>63A	Cold position	1.05In	t≤2h	Non-release
2	In=63A	Carried out immediately after previous test	1.30In	T<1h	Release	Current smoothly riseto specified value within 5s
2	In>63A	Carried our immediately after previous test	1.30In	T<2h	Release	Current smoothly riseto specified value within 5s
3	In≥63A	Cold position	10.00In	T>0.2s	Non-release
3	In≥63A	Cold position	20.00In	t≤0.2s	Release

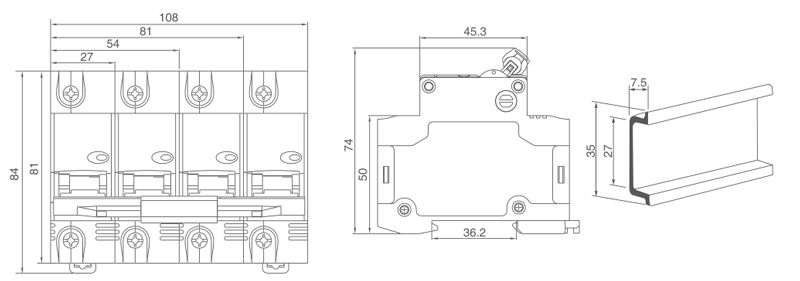

Dimension

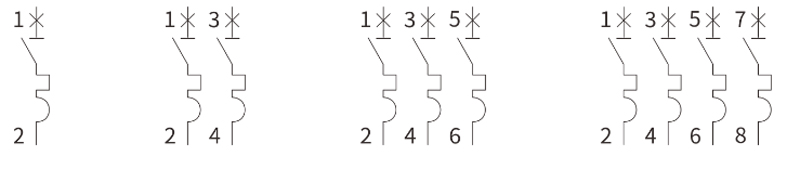

Wiring Diagram

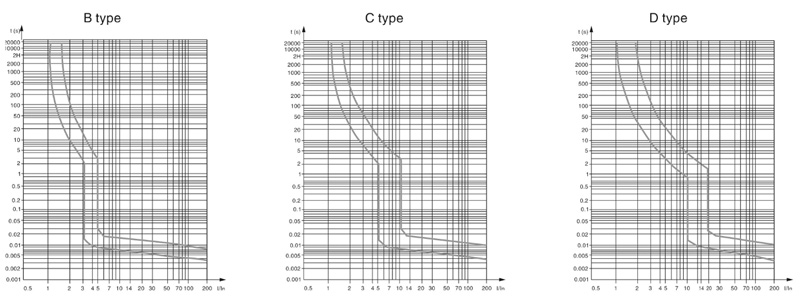

Characteristic Curve

Product Detail

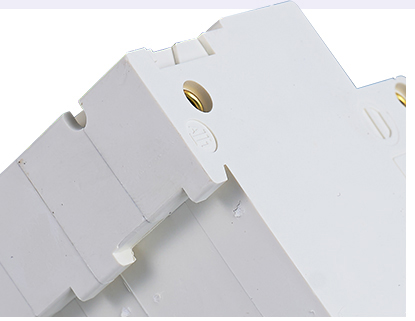

	Flame Retardant Shell The shell is made of flame retardant material High temperature flame retardant is safer

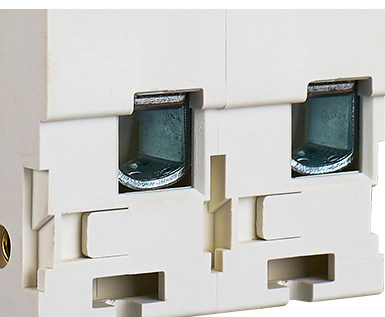

Tunnel Terminal Conductor wrapped tightly More reliable connection

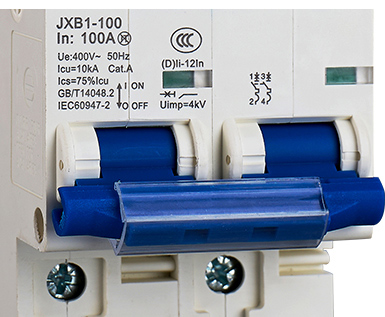

	Wide Handle The smooth lines of the handle are consistent with the human body Customary handle radian Reduce the pressure of water chestnut on fingers Better pull !

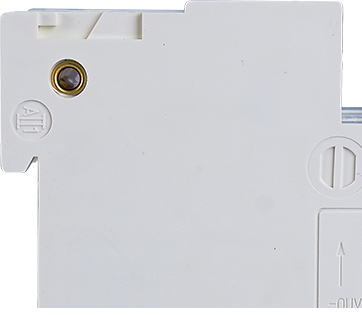

Brass Rivet Ensure the fastness of products Safer to use
